Td-07kv

SGABELLO E PEDALE CASSA NON INCLUSI NEL SET.

TD-07KV
SPECIFICATIONS

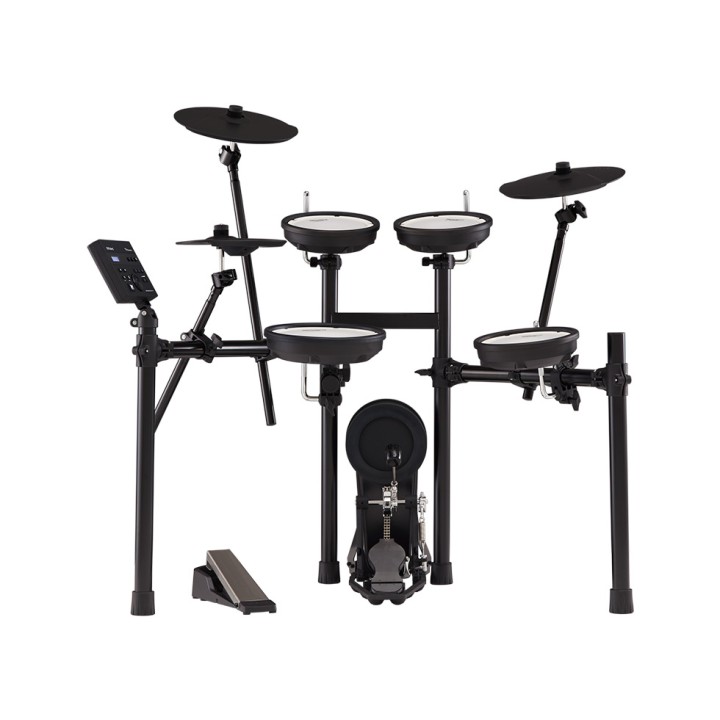

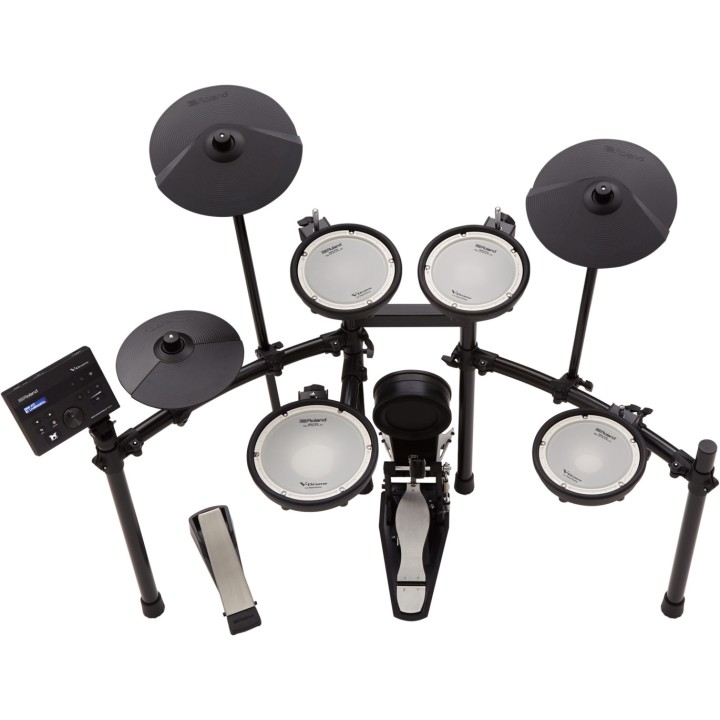

Kit configuration  (*1)Kick: KD-10 Snare: PDX-8 Hi-hat: CY-5 Hi-hat control pedal: Detactable for half-open stroke Tom: PDX-6A x 3 *2 Crash: CY-8 Ride: CY-8 Drum stand: Four-post type rack stand
Drum kits: 50(Preset: over 20)
Instruments: 143
Effect Types: Pad Equalizer (each pad), Overhead Mic Simulator, Room, Multi-Effects: 1 system, 30 types
Coach functions (5 modes): Time check (easy), Time check (hard), Quiet count, Auto up/down, Change-up
Metronome: Tempo (20--260), Rhythm type (5 types), Sounds (15 types)
Bluetooth: Supported standards: Bluetooth Ver 4.2, Supported profile: A2DP (Audio), GATT (MIDI over Bluetooth Low Energy), Codec: SBC (Support to the content protection of the SCMS- T method)
Display: 16 characters x 2 lines LCD (with backlight)
Connectors: OUTPUT/PHONES jack: Stereo miniature phone type, MIX IN jack: Stereo miniature phone type, USB COMPUTER port: USB B type, TRIGGER INPUT connector: DB-25 type (Kick, Snare, Tom 1, Tom 2, Tom 3, Hi-hat, Crash 1, Crash 2, Ride, Hi-hat control)
USB COMPUTER: Speed: Hi-speed USB, Driver mode: Generic, Vender, Protocol: USB MIDI, USB Audio *3
USB Audio: Sampling Rate (original): 44.1 kHz, Sampling Rate (with sampling rate converter): 96 kHz, 48 kHz, Record: 2 channels, Playback: 2 channels
Power supply: AC adaptor (DC 12 V)
Current draw: 250 mA
SIZE AND WEIGHT: Dimensions:1,230 (W) x 1,100 (D) x 1,200 (H) mm 48-3/7 (W) x 43-5/16 (D) x 47-1/4 (H) inches (including sound module, kick pad, kick pedal and drum throne) Weight: 21.7 kg / 47 lbs 14 oz
OTHER Accessories: Setup Guide, Owner''s Manual, Leaflet "USING THE UNIT SAFELY", AC adaptor, Special connection cable
Options (sold separately): Additinal crash cymbal (Crash2): CY-8, MDY-Standard *4, Personal drum monitor: PM series, V-Drums accessory package: DAP-3X, V-Drums mat: TDM series, Noise eater: NE series

*1 Kick pedal and drum throne are not included.*2 Unsupported for using a rim-shot.*3 USB Audio is required the using vender driver and switched vender mode.*4 MDY-Standard is additionally required for mounting a CY-8 on the stand.
