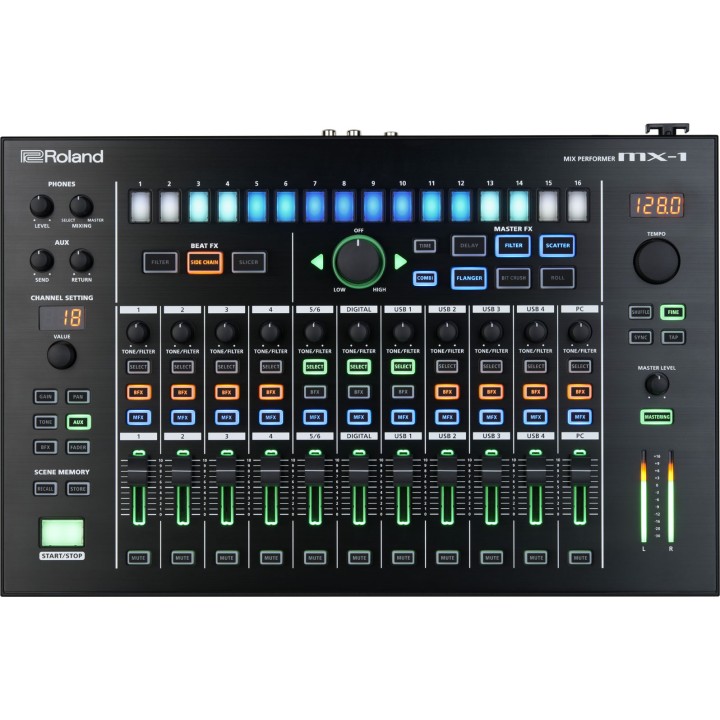

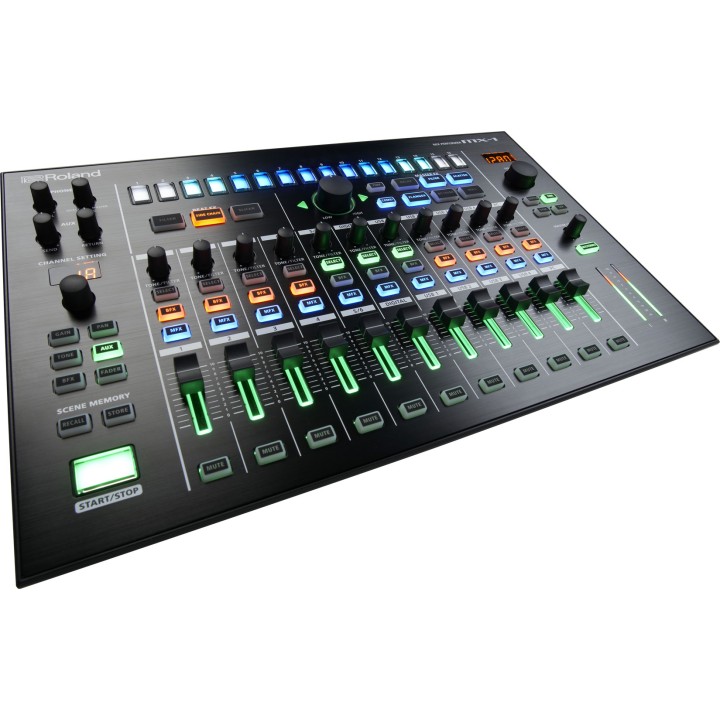

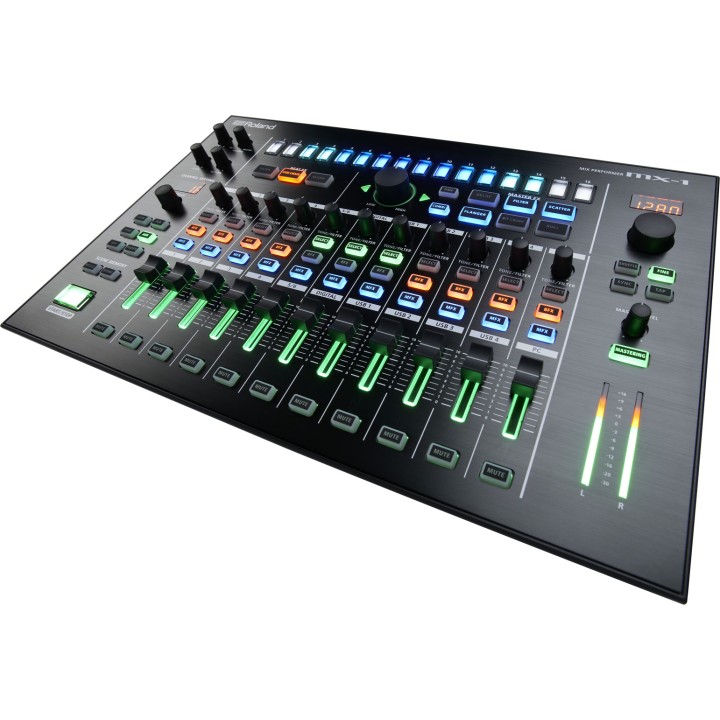

ROLAND | MX-1
Mixer performer

MX-1 Mix Performer ha il potere di unire i vostri synth, drum machines, loops, DAW tracks e altro in un solo strumento ottimizzato per la performance.

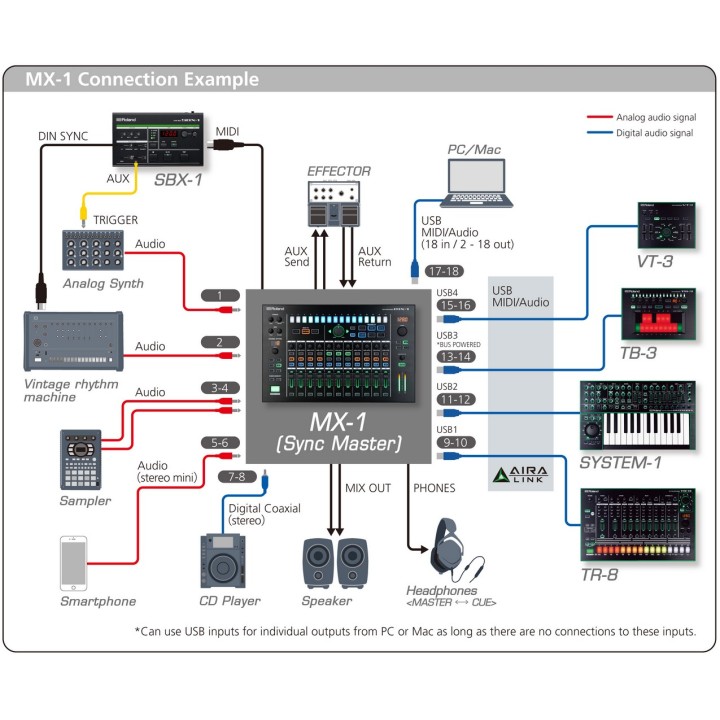

Combinando elementi di un mixer, di un controller, di un’interfaccia audio e di uno step-based effector, MX-1 è progettato per essere il centro del vostro setup.

SPECIFICHE TECNICHE:

• Tempo: 40-300
• Scene Memory: 16 x 4 (Bank A, B)
• BEAT FXFILTER: 5 types
• SIDE CHAIN: 5 types
• SLICER: 5 types
• MASTER FXDELAY: 8 types
• FILTER: 8 types
• SCATTER: 8 types
• FLANGER: 8 types
• BIT CRUSH: 8 types
• ROLL: 8 types
• MASTERING: 10 types
• Number of USB Audio Max Input/Output Channels: Sampling frequency: 96 kHz, 48 kHz, 44.1 kHz
• Input: 18 channels
• Output: 18 channels
• Signal Processing:
• PC interface: 24 bits
• AD/DA conversion: 24 bits
• Sampling Frequency:
• AD/DA conversion: 96, 48, 44.1 kHz
• DIGITAL (IN, OUT): 96, 48, 44.1 kHz
• Nominal Input Level (variable):
• Input 1–4: -26– +4 dBu
• Input 5/6: -26– +4 dBu
• Nominal Output Level:
• MIX OUT: +4 dBu
• Head Room:18 dB
• Input Impedance:
• Input 1–4: 100 k ohms
• Input 5/6: 100 k ohms
• Output Impedance:
• MIX OUT: 1 k ohm
• PHONES: 24 ohms
• Frequency Response:

96.0 kHz: 20 Hz–40 kHz (+0/-2 dB)
48.0 kHz: 20 Hz–22 kHz (+0/-2 dB)
44.1 kHz: 20 Hz–20 kHz (+0/-2 dB)

• Dynamic Range:

AD block INPUT 1–4: 100 dB typ.
AD block INPUT 5/6: 100 dB typ.
DA block MIX OUT: 108 dB typ.

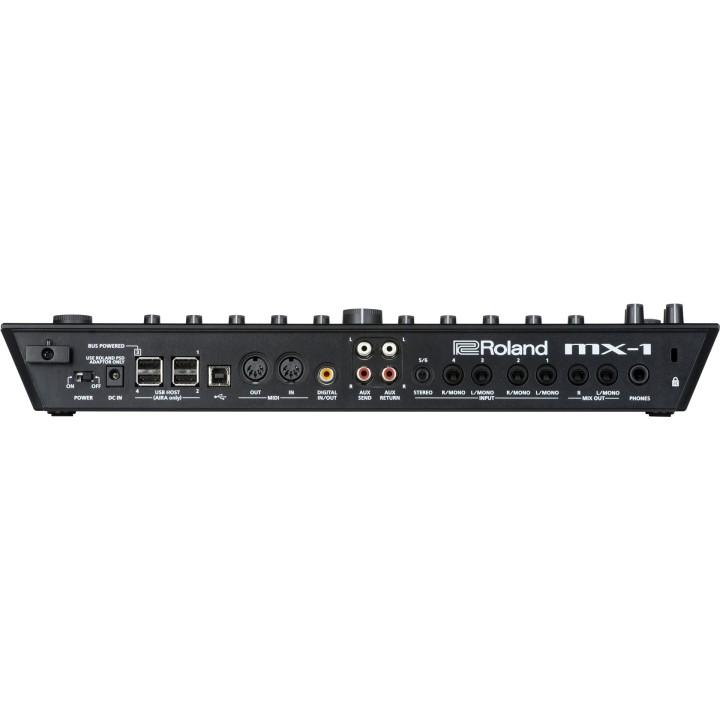

• Connectors:

PHONES jack: 1/4-inch stereo phone type
MIX OUT (L/MONO, R) jacks: 1/4-inch phone type (unbalance)
INPUT 1–4 (L/MONO, R/MONO) jacks: 1/4-inch phone type (unbalance)
INPUT 5/6 jack: Stereo miniature phone type
AUX RETURN (L, R) jacks: RCA phono type
AUX SEND (L, R) jacks: RCA phono type
USB FUNCTION Port: USB type B (Audio, Midi)
USB HOST 1–4 ports: USB type A (Audio, Midi, for only TB-3/VT-3/TR-8/SYSTEM-1)
USB HOST 3 port can supply USB Bus power
COAXIAL IN/OUT jack
MIDI (IN, OUT) connectors
DC IN jack

• Interface: Hi-Speed USB
• Digital input, output: Coaxial type (conforms to IEC60958)
• MIDI IN/OUT
• Power Supply: AC adaptor
• Current Draw: 1.7 A

Accessories:

Owner''s manual
Leaflet "USING THE UNIT SAFELY"
AC adaptor
Ableton Live Lite Serial Number Card
